BD-8868-A雙螺桿擠出切粒機組/儀表型
BD-8868-A
實驗室雙螺桿擠出機切粒機組/儀表型
本機適合工程塑料、改性塑膠、廢舊塑膠、色母粒的混煉加工實驗，具有塑化均質、著色打樣、填充改性等功能。適用實驗室測試和控制質量，教學研究和小規模生產，可直接擠出造粒、片材、管材等，以模擬多種生產工藝。
Introduction
BD-8868-A

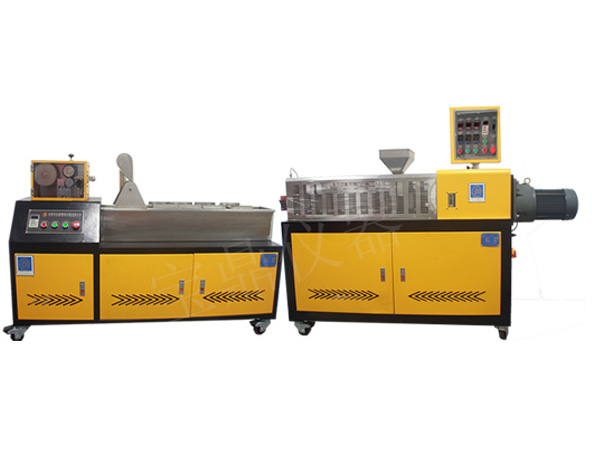

Laboratory twin screw extruder pelletizing unit / instrument type
The machine is suitable for mixing and processing experiments of engineering plastics, modified plastics, waste plastics and color masterbatch. It has the functions of plasticization and homogenization, coloring and proofing, filling and modification, etc. It is suitable for laboratory testing and quality control, teaching research and small-scale production. It can directly extrude granulation, sheet and pipe to simulate a variety of production processes.
1 screw diameter: 20, 25, 30 optional
2 length diameter ratio: 40, other length diameter ratio (10~30 times) optional
3 screw steering: flat form
4 screw speed: 0-120rpm variable frequency speed regulation
5 screw: 40CrNiMo chromium molybdenum alloy with special tool steel, screw feeding, conveying section, compression section and mixing head, with hard chrome polishing, ultra precision honing process, nitriding depth 0.4-0.7mm, hardness of HRC55~60 nitride
6 barrel: double metal material, can be replaced by the hard alloy wear-resistant sleeve, according to the different functions of the multi cylinder combination
7 combination: Screw Kit for the building block type screw combination, multi cylinder combination
8 heating zones: barrel area 4 die cast aluminum heater, 2 zone heater, covered with stainless steel safety cover
9 cooling device: the barrel adopts water cooling system intact
10 drive power: 2.2KW/3.7KW/4KW gear reducer motor
- assist mechanism
1: quick change die extrusion die, a number of 2- 3 (V - shaped hollow cylindrical - shaped sheet)
2 length diameter ratio: 40, other length diameter ratio (10~30 times) optional
3 screw steering: flat form
4 screw speed: 0-120rpm variable frequency speed regulation
5 screw: 40CrNiMo chromium molybdenum alloy with special tool steel, screw feeding, conveying section, compression section and mixing head, with hard chrome polishing, ultra precision honing process, nitriding depth 0.4-0.7mm, hardness of HRC55~60 nitride
6 barrel: double metal material, can be replaced by the hard alloy wear-resistant sleeve, according to the different functions of the multi cylinder combination
7 combination: Screw Kit for the building block type screw combination, multi cylinder combination
8 heating zones: barrel area 4 die cast aluminum heater, 2 zone heater, covered with stainless steel safety cover
9 cooling device: the barrel adopts water cooling system intact
10 drive power: 2.2KW/3.7KW/4KW gear reducer motor
- assist mechanism
1: quick change die extrusion die, a number of 2- 3 (V - shaped hollow cylindrical - shaped sheet)
